October 2002
TRADERS' TIPS

Here is this month's selection of Traders' Tips, contributed by various developers of technical analysis software to help readers more easily implement some of the strategies presented in this and other issues.

You can copy these formulas and programs for easy use in your spreadsheet or analysis software. Simply "select" the desired text by highlighting as you would in any word processing program, then use your standard key command for copy or choose "copy" from the browser menu. The copied text can then be "pasted" into any open spreadsheet or other software by selecting an insertion point and executing a paste command. By toggling back and forth between an application window and the open Web page, data can be transferred with ease.

This month's tips include formulas and programs for:


TRADESTATION: RSI SMOOTHED
TRADESTATION: VOLATILITY BREAKOUT
METASTOCK: RSI SMOOTHED
METASTOCK: VOLATILITY BREAKOUT
eSIGNAL: RSI SMOOTHED
AIQ: VOLATILITY BREAKOUT
Wealth-Lab: RSI SMOOTHED
Wealth-Lab: VOLATILITY BREAKOUT
NEUROSHELL TRADER: RSI SMOOTHED
NEUROSHELL TRADER: VOLATILITY BREAKOUT
NeoTicker: RSI SMOOTHED
NeoTicker: VOLATILITY BREAKOUT
Investor/RT: RSI SMOOTHED
TRADINGSOLUTIONS: RSI SMOOTHED
TECHNIFILTER PLUS: RSI SMOOTHED
TECHNIFILTER PLUS: VOLATILITY BREAKOUT
SMARTRADER: RSI SMOOTHED
WAVE WI$E MARKET SPREADSHEET: RSI SMOOTHED



or return to October 2002 Contents

TRADESTATION: RSI SMOOTHED

In "The RSI Smoothed" in this issue, author John Ehlers discusses how Welles Wilder's RSI formula can be simplified and then suggests a technique for smoothing the RSI.

In the article, Ehlers correctly notes Wilder's formulation as RSI = 100 - [ 100 / (1 + RS )], but then essentially states that RS = (Summation of closes up) / (Summation of closes down). In his 1978 book New Concepts In Technical Trading Systems, Wilder states that RS = (Average of 14 days' closes up) / (Average of 14 days' closes down). If the "average" that Wilder had in mind was a simple average, then Wilder's formulation would be equivalent to Ehlers' formulation, since the averages' divisors would cancel out.

If you read Wilder's detailed description of the RSI calculation carefully, however, you realize that Wilder is using simple averages only for the initial calculation. For the subsequent average calculations, he drops 1/14th of the previous average value and adds 1/14th of the new value. If you do the math, you will find that this is the "classic" exponential average, in which the smoothing factor is 1/n (implemented as the function XAverageOrig in TradeStation 6), instead of the "modern" exponential average, in which the smoothing factor is 2/(n+1) (implemented as the function XAverage in TradeStation 6).

Given the above, Ehlers' "simplification" does not really match what Wilder had in mind. Again, if you do the math, you will find that a more accurate simplification of Wilder's RSI formula would be as illustrated in the following EasyLanguage code. To make it match Wilder's results precisely, the initialization would still need to be done via simple averages. Otherwise, the following code can be used as is and it will match Wilder's results after an initial stabilization period of two or three times the length (hard-coded as 14):

Indicator: RSI_uninitialized

variables:

 Change( 0 ),

 NetChgAvg( 0 ),

 TotChgAvg( 0 ),

 MyRSI( 0 ) ;

Change = Close - Close[1] ;

NetChgAvg = XAverageOrig( Change, 14 ) ;

TotChgAvg = XAverageOrig( AbsValue( Change ), 14 ) ;

MyRSI = 50 * ( NetChgAvg / TotChgAvg + 1 ) ;

Plot1( MyRSI ) ;


The TradeStation 6 implementation of the RSI function is based on the above simplified formulation. It also includes initialization calculations based on simple averages, so it matches Wilder's results precisely.

Finally, Ehlers suggests smoothing the close with a six-bar finite impulse response (FIR) filter before starting the RSI computation. As we have noted in earlier Traders' Tips columns (January 2002 and July 2002), the FIR filter is also known as a triangular moving average, and can be conveniently implemented as a double-smoothed simple moving average. We reproduce the code for this function (TriAverage_gen) below.

After you have imported this function into your TradeStation 6 work area, you can plot the smoothed RSI in TradeStation 6 without any additional code. Simply use the built-in RSI indicator with the following inputs Price = TriAverage_gen( Close, 6 ) and Length = 10. (The other inputs can be left as is.)


Function: TriAverage_gen

inputs:

 Price( numericseries ),

 Length( numericsimple ) ;

variables:

 Length1( 0 ),

 Length2( 0 ) ;

Length1 = Floor( ( Length + 1 ) * .5 ) ;

Length2 = Ceiling( ( Length + 1 ) * .5 ) ;

TriAverage_gen =

Average( Average( Price, Length1 ), Length2 ) ;


 This indicator and function code will be available for download from the EasyLanguage Exchange at www.tradestationworld.com.

--Ramesh Dhingra
Director, EasyLanguage Consulting
TradeStation Technologies, Inc. (formerly Omega Research, Inc.)
a wholly owned subsidiary of TradeStation Group, Inc.
www.TradeStation.com
GO BACK

TRADESTATION: VOLATILITY BREAKOUT

In his article "Designing Volatility Breakout Systems" in this issue, author Paolo Pezzutti describes a buy strategy and provides the EasyLanguage code for his combined buy and sell-short strategy.

However, the EasyLanguage code provided by Pezzutti in the article is written for our legacy systems and will not run on our current system, TradeStation 6, without editing. If you were importing the code into TradeStation 6 using our import wizard, the code would be updated automatically, but if you are entering it by hand or cutting and pasting it, you will need to edit it as follows:

inputs: p( 13 ), s( 13 ), f( .5 ) ;

if C < C[1] and C > Average( C, P ) then

 Buy next bar at C + f * ( H - L ) stop ;

Sell next bar at High limit ;

if C > C[1] and C < Average( C, S ) then

 SellShort next bar at C - f * ( H - L ) stop ;

BuyToCover next bar at Low limit ;


Note that the legacy keywords ExitLong and ExitShort were changed to Sell and BuyToCover, respectively, in TradeStation 6. The old Sell keyword was changed to SellShort.

Even with these changes, however, the code is not consistent with the author's description, where he states "Trigger: buy stop next day at close+0.5(high - low) if the entry point is higher than the open."  The italicized condition (my italics) is not included in the author's code, but is required to avoid buying at the next open if the next open is higher -- and it could be much higher -- than the calculated buy stop.

You would also want to avoid buying tomorrow if today's high is lower than the calculated buy stop, because otherwise there would be an immediate, zero-profit exit as soon as there was an entry.

Adding the above two conditions yields the following code for the buy strategy (the sell strategy would be written similarly):

Strategy: Simple Volatility Breakout

inputs: p( 13 ), s( 13 ), f( .5 ) ;

variables: BuyLevel( 0 ) ;

BuyLevel = C + f * ( H - L ) ;

if BuyLevel < High

 and BuyLevel > Open next bar

 and C < C[1]

 and C > Average( C, P )

then

 Buy next bar at BuyLevel stop ;

Sell next bar at High limit ;


Note that the above code will always yield profitable trades if the buy and sell-to-exit occur at the same bar. If the sell-to-exit does not occur at the same bar, the risk is unlimited. To limit the risk, some kind of stop would need to be added.

This indicator code will be available for download from the EasyLanguage Exchange at www.tradestationworld.com.

--Ramesh Dhingra
Director, EasyLanguage Consulting
TradeStation Technologies, Inc. (formerly Omega Research, Inc.)
a wholly owned subsidiary of TradeStation Group, Inc.
www.TradeStation.com


GO BACK

METASTOCK: RSI SMOOTHED

In "The RSI Smoothed" in this issue, John Ehlers bases his calculations on an RSI calculation that sums the changes in the closing price. While some technical analysis programs use this version, Welles Wilder's book New Concepts In Technical Trading Systems defines the RSI slightly differently. Wilder smoothes the sums using his own averaging method before he calculates the final ratio. Since MetaStock uses Wilder's method of calculating the RSI, we are including both John Ehlers' formula, as presented in his article in this issue, and a formula for adding Ehlers' smoothing to the standard RSI.

To create an indicator in MetaStock, select Indicator Builder from the Tools menu, click New, and enter the following formula:

Smoothed Relative Strength Index ( Ehlers )

Formula:

len:=10;

smooth23:=(C+(2*Ref(C,-1))+(2*Ref(C,-2))+Ref(C,-3))/6;

change:= ROC(smooth23,1,$);

cu23:=Sum(If(change>0,change,0),len);

cd23:=Sum(If(change<0,Abs(change),0),len);

cu23/(cu23+cd23)
Smoothed Relative Strength Index ( with Wilder's smoothing )

Formula:

len:=10;

smooth23:=(C+(2*Ref(C,-1))+(2*Ref(C,-2))+Ref(C,-3))/6;

change:= ROC(smooth23,1,$);

Z:=Wilders(If(change>0,change,0),len);

Y:=Wilders(If(change<0,Abs(change),0),len);

RS:=Z/Y;

100-(100/(1+RS))
--William Golson
Equis International
www.equis.com


GO BACK

METASTOCK: VOLATILITY BREAKOUT

In "Designing Volatility Breakout Systems," Paolo Pezzutti sets intraday entry and exit conditions. Intraday signals can only be tested using MetaStock Professional. The following system test replicates the TradeStation signals given in the article.

To create a system test in MetaStock, select System Tester from the Tools menu, click New, and enter the following formula:

Enter Long
Formula:

new:=ROC(DayOfWeek(),1,$)<>0;

r:=ValueWhen(1,new,Ref(HighestSince(1,new,H)-LowestSince(1,new,L),-1));

count:=Cum(If(new,Ref(C,-1),0));

ma:=count-ValueWhen(13,new,Ref(count,-1));

ValueWhen(1,new,Ref(C,-1))<ValueWhen(2,new,Ref(C,-1)) AND

ValueWhen(1,new,Ref(C,-1))>ma AND

C>=ValueWhen(1,new,Ref(C+(0.5*r),-1))

Close Long
Formula:

new:=ROC(DayOfWeek(),1,$)<>0;

r:=ValueWhen(1,new,Ref(HighestSince(1,new,H)-LowestSince(1,new,L),-1));

count:=Cum(If(new,Ref(C,-1),0));

ma:=count-ValueWhen(13,new,Ref(count,-1));

bc:=ValueWhen(1,new,Ref(C,-1))<ValueWhen(2,new,Ref(C,-1)) AND

ValueWhen(1,new,Ref(C,-1))>ma AND

C>=ValueWhen(1,new,Ref(C+(0.5*r),-1));

H>=ValueWhen(1,bc,ValueWhen(1,new,Ref(HighestSince(1,new,H),-1)))

Enter Short
Formula:

new:=ROC(DayOfWeek(),1,$)<>0;

r:=ValueWhen(1,new,Ref(HighestSince(1,new,H)-LowestSince(1,new,L),-1));

count:=Cum(If(new,Ref(C,-1),0));

ma:=count-ValueWhen(13,new,Ref(count,-1));

ValueWhen(1,new,Ref(C,-1))>ValueWhen(2,new,Ref(C,-1)) AND

ValueWhen(1,new,Ref(C,-1))<ma AND

C>=ValueWhen(1,new,Ref(C-(0.5*r),-1))

Close Short
Formula:

new:=ROC(DayOfWeek(),1,$)<>0;

r:=ValueWhen(1,new,Ref(HighestSince(1,new,H)-LowestSince(1,new,L),-1));

count:=Cum(If(new,Ref(C,-1),0));

ma:=count-ValueWhen(13,new,Ref(count,-1));

sc:=ValueWhen(1,new,Ref(C,-1))>ValueWhen(2,new,Ref(C,-1)) AND

ValueWhen(1,new,Ref(C,-1))<ma AND

C>=ValueWhen(1,new,Ref(C-(0.5*r),-1));

L<=ValueWhen(1,sc,ValueWhen(1,new,Ref(LowestSince(1,new,L),-1)))


The following exploration is designed to look for this volatility system's setup and reports the buy stop and profit target in columns B and C, respectively. Column A will display a 1 if this is a long signal and a -1 if it is a short signal. To create an exploration in MetaStock, select Explorer from the Tools menu, click New, and enter the following formula:

Column A : L/S
Formula:
If((C<Ref(C,-1) AND C>Mov(C,13,S)),1,-1)

Column B: Buy Stop
Formula:
r:=.5*(H-L);
If((C<Ref(C,-1) AND C>Mov(C,13,S)),C+r,C-r)

Column C: Target
Formula:
If((C<Ref(C,-1) AND C>Mov(C,13,S)),H,L)

Filter
Formula:
(C<Ref(C,-1) AND C>Mov(C,13,S)) OR
(C>Ref(C,-1) AND C<Mov(C,13,S))

--William Golson
Equis International
www.equis.com


GO BACK

eSIGNAL: RSI SMOOTHED

This eSignal formula plots the smoothed RSI, as discussed in John Ehlers' article in this issue. A sample chart can be seen in Figure 1.

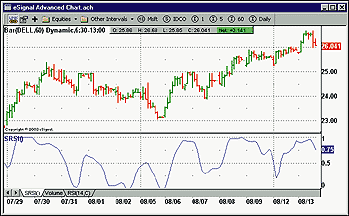

FIGURE 1: eSIGNAL, SMOOTHED RSI (SRSI). This plots the SRSI on a 60-minute intraday chart of Dell. It's an example of a custom eSignal Formula Script (EFS) that can be written and modified in any text editor or within the eSignal formula editor.

/**********************************************************************
Copyright © eSignal, a division of Interactive Data Corporation. 2002. All rights reserved.
This sample eSignal Formula Script (EFS) may be modified and saved under a new filename; however, eSignal is no longer responsible for the functionality once modified.
eSignal reserves the right to modify and overwrite this EFS file with each new release.
**********************************************************************/
function preMain() {

 setPriceStudy(false);

 setStudyTitle("SRSI");

 setCursorLabelName("SRSI", 0);

 setDefaultBarFgColor(Color.blue, 0);

}

Smooth23 = new Array();

function main(Len) {

 if (Len == null)

  Len = 10;



 var count = 0;

 var CU23 = 0;

 var CD23 = 0;

 var SRSI = 0;

 var i = 0;

 if (getBarState() == BARSTATE_NEWBAR){

  for(i = Len - 1; i > 0; i--)

   Smooth23[i] = Smooth23[i - 1];

  Smooth23[0] = ( close() + 2 * close(-1) + 2 * close(-2) + close(-3) ) / 6;

 }

 CU23 = 0;

CD23 = 0;

 for(i = 0; i < Len - 1; i++){

  if(Smooth23[i] > Smooth23[i + 1])

   CU23 = CU23 + Smooth23[i] - Smooth23[i + 1];

  if(Smooth23[i] < Smooth23[i + 1])

   CD23 = CD23 + Smooth23[i + 1] - Smooth23[i];

 }

 if(CU23 + CD23 != 0)

  SRSI = CU23/(CU23 + CD23);

 return SRSI;

}


/*************************************************************/


--eSignal, a division of Interactive Data Corp.
800 815-8256, www.esignal.com


GO BACK

AIQ: VOLATILITY BREAKOUT

Here is the code for use in AIQ's Expert Design Studio based on Paolo Pezzutti's article in this issue, "Designing Volatility Breakout Systems."

!!!  Stocks and Commodities - October 2002 Traders Tips.  Authored by Mike Kaden,
!!! based on the article written by Paolo Pezzutti

TrendIndicator if [close]> simpleavg([close],13).

SetUp if [close] < val([close],1).

Trigger if [close]> (([high]-[low])/2)+[low] and [close] > [open].

Exit if [close] < val([high],1).

! Note: Set ADX/R to 14days

TrendFilter if [adx]>18.

TrueRange is max([high]-[low],max([high]-val([close],1),val([close],1)-[low])).

AvgTrueRange is SimpleAvg(TrueRange,13).

VolatilityFilter if simpleavg([close],13) >0.01.
 --Mike Kaden
 Aiq Systems
 www.aiq.com


GO BACK

Wealth-Lab: RSI SMOOTHED

The following script compares two ways of constructing relative strength index (RSI) with the smoothed RSI described by John Ehlers in his article in this issue, "The RSI Smoothed." Wealth-Lab contains a built-in FIR (finite impulse response) function that we used to smooth the CU and CD series before constructing the RSI.

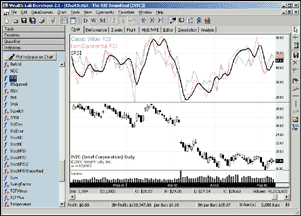

FIGURE 2: Wealth-Lab, SMOOTHED RSI. This sample Wealth-Lab chart plots the classic Wilders' RSI (light blue), a nonexponential RSI (light red), and Ehlers' smoothed RSI (black).


The classic method of constructing RSI as described by Welles Wilder in his 1978 book New Concepts In Technical Trading Systems involves basing the new closes up (CU) and closes down (CD) values on their previous day's values, using an exponential weighting to apply the new difference values. This classic method is used in the internal calculation of Wealth-Lab's native RSI indicator.

The Wealth-Lab script presented here allows you to compare the classic RSI with a nonexponential RSI, and with the smoothed RSI:


var i, Bar, CU, CD, CUSmooth, CDSMooth, MyRSI, SRSI, RSPane: integer;

var x, sumup, sumdown, Diff: float;

{ Create our Price Series }

CU := CreateSeries;

CD := CreateSeries;

MyRSI := CreateSeries;

SRSI := CreateSeries;

const PERIOD = 14;

{ Accumulate the "up" and "down" differences }

for Bar := PERIOD + 1 to BarCount - 1 do

begin

  sumup := 0;

  sumdown := 0;

  for i := 0 to PERIOD - 1 do

  begin

    Diff := PriceClose( Bar - i ) - PriceClose( Bar - i - 1 );

    if Diff > 0 then

      sumup := sumup + Diff

    else

      sumdown := sumdown + ( -Diff );

  end;

  @CU[Bar] := sumup;

  @CD[Bar] := sumdown;

end;

{ Smooth differences with the FIR filter }

CDSmooth := FIRSeries( CD, '1,2,2,1' );

CUSmooth := FIRSeries( CU, '1,2,2,1' );

{ Construct Unsmoothed and Smoothed RSI }

for Bar := PERIOD + 1 to BarCount - 1 do

begin

  x := @CU[Bar] / @CD[Bar];

  x := 100 - ( 100 / ( 1 + x ) );

  @MyRSI[Bar] := x;

  x := @CUSmooth[Bar] / @CDSmooth[Bar];

  x := 100 - ( 100 / ( 1 + x ) );

  @SRSI[Bar] := x;

end;

{ Plot Classic, Non-Exponential and Smoothed RSI }

RSPane := CreatePane( 200, true, true );

PlotSeries( RSISeries( #Close, 14 ), RSPane, 558, #Thin );

DrawText( 'Classic Wilder RSI', RSPane, 4, 4, 558, 12 );

PlotSeries( MyRSI, RSPane, 855, #Thin );

DrawText( 'Non-Exponential RSI', RSPane, 4, 24, 855, 12 );

PlotSeries( SRSI, RSPane, #Black, #Thick );

DrawText( 'SRSI', RSPane, 4, 44, #Black, 12 );
Note that the smoothed RSI does indeed eliminate many of the "jiggles" that can lead to whipsaw signals. To experiment with different smoothing techniques, change the second parameter of the FirSeries function:

Three Bar: '1,1,1'

Four Bar: '1,2,2,1'

Six Bar: '1,2,3,3,2,1'


--Dion Kurczek, Wealth-Lab, Inc.
www.wealth-lab.com


GO BACK

Wealth-Lab: VOLATILITY BREAKOUT

Here is the WealthScript code to implement the volatility breakout system described in "Designing Volatility Breakout Systems" by Paolo Pezzutti in this issue.

One of the rules of the system is that the buy stop price must be above the open of the entry bar, so that we can be sure of entering on upward momentum. This can be problematic if you want to scan for next-day signals, since the open price of the next day is not known. Our script accomplishes this goal by making use of Wealth-Lab's built-in exception handling. The section of code that checks for the open price is enclosed in a "try"/"except" block, which will silently handle an error condition and allow the script to continue. This allows us to run the system with the correct rules for backtesting, and still be able to scan for trade signals for the next day. The only thing to keep in mind is that you'd have to screen the trade candidates at the time of market open, making sure that the open price is below the buy stop level.

We also coded the two system filters (ATR and ADX), which were not in the EasyLanguage code provided in Pezzutti's article. Finally, we added an additional filter that eliminates trades where the entry level was above the day's high.


var Bar: integer;

var x: float;

for Bar := 14 to BarCount - 1 do

begin

  if not LastPositionActive then

  begin

    if PriceClose( Bar ) > SMA( Bar, #Close, 13 ) then

      if PriceClose( Bar ) < PriceClose( Bar - 1 ) then

        if ADX( Bar, 14 ) > 18 then

          if ATR( Bar, 13 ) / SMA( Bar, #Close, 13 ) > 0.01 then

          begin

            x := PriceClose( Bar ) + 0.5 * ( PriceHigh( Bar ) - PriceLow( Bar ) );

            if x < PriceHigh( Bar ) then

            begin

              try

                if x > PriceOpen( Bar + 1 ) then

              except

              end;

                BuyAtStop( Bar + 1, x, '' );

            end;

          end;

  end;

  if LastPositionActive then

    SellAtLimit( Bar + 1, PriceHigh( Bar ), LastPosition, '' );

end;


 A sample chart is shown in Figure 3.



FIGURE 3: Wealth-Lab, VOLATILITY BREAKOUT SYSTEM. Here is a sample chart demonstrating the volatility breakout system in Wealth-Lab.
--Dion Kurczek, Wealth-Lab, Inc.
www.wealth-lab.com
GO BACK

NEUROSHELL TRADER: RSI SMOOTHED

John Ehlers' smoothed RSI can be easily implemented in NeuroShell Trader by using its ability to call programs written in C, C++, Power Basic (also Visual Basic using one of our add-on packages), or Delphi. We've already programmed the smoothed RSI as a custom indicator that you can download from NeuroShell Trader's free technical support website.

After downloading the custom indicator, you can insert it by doing the following (Figure 4):

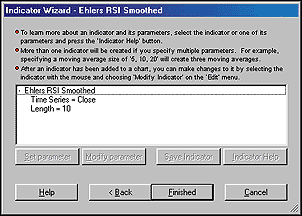

FIGURE 4: NEUROSHELL TRADER, SMOOTHED RSI. Here's how to add the Ehlers smoothed RSI using NeuroShell Trader's Indicator Wizard.
1. Select "New Indicator ..." from the Insert menu.
2. Select the Custom Indicator category.
3. Select the Ehlers RSI Smoothed indicator.
4. Select the parameters as you desire.
5. Press the Finished button.


A sample chart is shown in Figure 5.

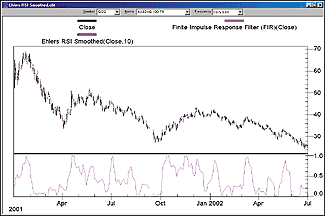

FIGURE 5: NEUROSHELL TRADER, SMOOTHED RSI. Here's a sample NeuroShell Trader chart displaying the Ehlers smoothed RSI.


The smoothed RSI indicator may also be combined with any of our 800+ built-in indicators into a chart, prediction, or trading strategy. In addition, if you decide to use this indicator in a prediction or a trading strategy, the coefficients can be optimized by the Genetic Algorithm optimizer built into NeuroShell Trader Professional. This can provide you with your own custom version of Ehlers' RSI smoothed indicator.

Users of NeuroShell Trader can go to the STOCKS & COMMODITIES section of the NeuroShell Trader free technical support website to download a copy of any of the Traders' Tips.

For more information on NeuroShell Trader, visit www.NeuroShell.com.


--Marge Sherald, Ward Systems Group, Inc.
301 662-7950, sales@wardsystems.com
https://www.neuroshell.com


GO BACK

NEUROSHELL TRADER: VOLATILITY BREAKOUT

To implement in NeuroShell Trader the volatility breakout system described by Paolo Pezzutti in his article in this issue, "Designing Volatility Breakout Systems," select "New Trading Strategy ..." from the Insert menu and enter the following long and short entry conditions in the appropriate locations of the Trading Strategy Wizard:


Generate a buy long STOP order if ALL of the following are true:

A>B ( Close, MovAvg ( Close, 13 ) )

A<B ( Close, Lag ( Close, 1 ) )

 Using a Long Entry Stop Price of:

  Add2( Close, Multiply2 ( 0.5, Subtract ( High, Low ) ) )

Generate a sell long LIMIT order if ALL of the following are true:

 A=B(Close,Close)

 Using a Long Exit Limit Price of:

  High

Generate a sell short STOP order if ALL of the following are true:

 A<B ( Close, MovAvg ( Close, 13 ) )

 A>B ( Close, Lag ( Close, 1 ) )

 Using a Long Entry Stop Price of:

  Add2( Close, Multiply2 ( 0.5, Subtract ( High, Low ) ) )

Generate a cover short LIMIT order if ALL of the following are true:

 A=B(Close,Close)

 Using a Long Exit Limit Price of:

  Low


If you wish to implement the additional ADX and ATR filters described in the article, simply add the following conditions to the Trading Strategy:


Long Entry additional conditions:

A>B ( AvgDirectionalMovement(High,Low,Close,14,14) , 18 )

A>B ( Divide(Average True Range(High,Low,Close,13), MovAvg(Close,13) , 0.01 )

Short Entry additional conditions:

A<B ( AvgDirectionalMovement(High,Low,Close,14,14) , 82 )

A>B ( Divide(Average True Range(High,Low,Close,13), MovAvg(Close,13) , 0.01 )


If you have NeuroShell Trader Professional, you can also choose whether the system parameters should be optimized. After backtesting the trading strategy, use the "Detailed Analysis ..." button to view the backtest and trade-by-trade statistics for the trading system.

Users of NeuroShell Trader can go to the STOCKS & COMMODITIES section of the NeuroShell Trader free technical support website to download a sample chart with the volatility breakout trading system and the volatility breakout trading system with the added ADX and ATR filters (Figure 6). The sample chart also includes the average true range custom indicator used in the additional filters.

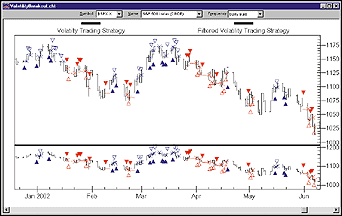

FIGURE 6: NEUROSHELL TRADER, VOLATILITY BREAKOUT TRADING SYSTEM. Here's a sample NeuroShell Trader chart showing the volatility breakout system and the ADX/ATR filtered volatility breakout trading system. Note the ability to add two different trading systems to the same chart.
--Marge Sherald, Ward Systems Group, Inc.
301 662-7950, sales@wardsystems.com
www.neuroshell.com


GO BACK

NeoTicker: RSI SMOOTHED

In this Traders' Tip, we will walk through how to use NeoTicker formula language to implement the concept presented in the article "The RSI Smoothed" by John Ehlers in this issue.

To create a new formula indicator from scratch, you can select Program>Script Editor>New from the menu. You will see an empty script editor. Click on the Indicator>Setup... from the script editor menu. In the Function field, enter "SmoothedRsi"; in the Description field, enter "RSI Smoothed"; in the Language field, select "Formula." These settings tell NeoTicker the indicator type and name.

In the white space under the User Parameters tab, right-click and select "Add" from the popup menu. In the Label field, enter the name "length". In the type field, select "integer .gt. 1". In the default field, enter "10" as the default length. These settings will allow the users to change the length of the Rsi.

Then click on the tab "Pane Option," change the Indicator Placement to "New Pane" and the Value Range to "0 to 100." These settings will force the indicator to come up in a new pane.

At this point, you have completed the indicator setup. Press the Apply button to confirm your changes. In the blank script editor, you can enter the code in Listing 1:


LISTING 1

Smooth23 := (close + 2*close (1) + 2*close (2) + close (3))/6;

plot1 := RSIndex ( Smooth23, param1);


You have completed the indicator construction. The next step is to compile and install the indicator. On the script editor menu, click on Indicator>Install. NeoTicker will prompt to ask you if you want to save before install; click "Yes." Then you should see a confirmation saying, "Script was installed successfully." Next, I will show you how to add the indicator to a time chart.

Open a new time chart and add a symbol. In my sample chart (Figure 7), I use the e-mini SP symbol. Click on the box showing the e-mini symbol in the upper left-hand corner of the chart. This will make the data series turn yellow; this means the data series is selected. Right-click on the symbol box, and select "Add Indicator." You will see an Add Indicator window come up. In the upper left, click on the "All" tab. You will have to look up the name "RSI smoothed." To locate it quickly, type "R" on the keyboard. Press the Apply button, and you will have the SmoothRsi indicator show up in the chart.




FIGURE 7: NEOTICKER, SMOOTHED RSI. Here's a sample NeoTicker chart of the smoothed RSI.

--Kenneth Yuen, TickQuest Inc.
www.tickquest.com


GO BACK

NeoTicker: Volatility Breakout

To implement in NeoTicker the trading system presented in "Designing Volatility Breakout Systems" by Paolo Pezzutti in this issue, you will need to create a new Delphi Script system-testing indicator named Volatility Breakout System (Listing 1) with five parameters and three plots.

The volbreak system script will highlight the long and short trades and plot an equity curve (Figure 8).





FIGURE 8: NEOTICKER, VOLATILITY BREAKOUT. Here's a sample chart showing the volatility breakout trading system in NeoTicker.


You can also list the trades and the summary in a report window. First, you need to open a new report window. Then at the Edit Indicator window, click on the "Report" tab. Check the Trade List and Trade Summary checkboxes so they are on. You will also need to check the Output to Report Window checkbox on and select the "Opened Report Window" to export the report to. This will allow you to see the result in the opened report window.


LISTING 1

function volbreak : double;

var bmovavg, smovavg : variant;

    myadx, BATR, SATR : variant;

    Pfactor : double;

    TradeSize : integer;

begin

  Pfactor := Param3.real;

  TradeSize := param5.int;

  ItSelf.MakeIndicator ('bmovavg', 'average', ['1'], [param1.str]);

  bmovavg := ItSelf.Indicator ('bmovavg');

  ItSelf.MakeIndicator ('smovavg', 'average', ['1'], [param2.str]);

  smovavg := ItSelf.Indicator ('smovavg');

  ItSelf.MakeIndicator ('myadx', 'ADX', ['1'], [param4.str]);

  myadx := ItSelf.Indicator ('myadx');

  ItSelf.MakeIndicator ('BATR', 'avgtruerange', ['1'], [param1.str]);

  BATR := ItSelf.Indicator ('BATR');

  ItSelf.MakeIndicator ('SATR', 'avgtruerange', ['1'], [param2.str]);

  SATR := ItSelf.Indicator ('SATR');

  if Trade.OpenPositionSize = 0 then

  begin

    if (Data1.Close [0] < Data1.Close [1]) and

       (Data1.Close [0] > bmovavg.Value [0]) and

       (myadx.Value [0] > 18 ) and

       (BATR.Value [0]/bmovavg.Value [0] > 0.01) then

    begin

      trade.buystop (Data1.Close [0] + Pfactor*(data1.high[0]-data1.low[0]),

                     TradeSize, otfFillorKill, 'Buy stop');

      trade.selllimit (data1.High [1], TradeSize, otfFillorKill, 'Sell Exit');

      ItSelf.Plot [1] := Trade.CurrentEquity;

      ItSelf.Plot [2] := Data1.Close [0] +

                       Pfactor*(data1.High [0]-data1.low [0]);

      ItSelf.SuccessEx [3] := false;

      exit;

    end;

    if (Data1.Close [0] > Data1.Close [1]) and

       (Data1.Close [0] < smovavg.Value [0]) and

       (myadx.Value [0] > 18 ) and

       (SATR.Value [0]/smovavg.Value [0] > 0.01) then

    begin

      trade.sellstop (data1.Close [0] +Pfactor*(data1.high[0]-data1.low[0]),

                      TradeSize, otfFillorKill, 'Sell stop');

      trade.buylimit (data1.low [1], TradeSize, otfFillorKill, 'Buy Exit');

      ItSelf.Plot [1] := Trade.CurrentEquity;

      ItSelf.SuccessEx [2] := false;

      ItSelf.Plot [3] := data1.Close [0] -

                         Pfactor*(data1.high[0]-data1.low[0]);

      exit;

    end;

  end

  else

  begin

    if Trade.OpenPositionSize > 0 then

    begin

       if (data1.barsnum [0] - trade.openPositionEntryBar) > 1 then

          trade.sellatmarket (TradeSize, 'Sell Exit 2')

       else

          trade.selllimit (Data1.High [0], TradeSize,

                       otfFillorKill, 'Sell Exit 1');

    end;

    if Trade.OPenPositionSize < 0 then

    begin

       if (data1.barsnum [0] - trade.openPositionEntryBar) > 1 then

          trade.buyatmarket (TradeSize, 'Buy Exit 2')

       else

          trade.buylimit (Data1.Low [0], TradeSize,

                       otfFillorKill, 'Buy Exit 1');

    end;

  end;

  itSelf.Plot [1] := Trade.CurrentEquity;

  ItSelf.SuccessEx [2] := false;

  ItSelf.SuccessEx [3] := false;

end;


 A downloadable version of this system script will be available at the NeoTicker Yahoo! user group as well as the TickQuest website.

--Kenneth Yuen, TickQuest Inc.
www.tickquest.com


GO BACK

Investor/RT: RSI SMOOTHED

The smoothed RSI discussed in John Ehlers' article in this issue can be replicated in Investor/RT using a custom indicator. The syntax required for this custom indicator is:

100 * CU / (CU + CD)
where CU (closes up) and CD (closes down) are in turn custom indicators (CI) themselves, renamed. The syntax for CU is:
AVG( SUM( (CL > CL.1) * (CL ? CL.1), 10), 3)
and the syntax for CD is:
AVG( SUM( (CL < CL.1) * (CL.1 ? CL), 10), 3)
The tricky part of these two custom indicators is the use of (CL > CL.1) and (CL < CL.1). When True/False expressions such as these are used within a custom indicator, they evaluate numerically to either 1 (True) or zero (False).  Thus, the expression:
(CL > CL.1) * (CL ? CL.1)
will evaluate to zero when the change is less than or equal to zero (0 * (CL ? CL.1)). On the other hand, if change is positive, the result will be equal to the change itself (or 1 * (CL ? CL.1)). In this example, the observation period is 10, with a three-period smoothing. To change the observation period, simply change the 10s to the observation period of your choice. To change the smoothing, simply change the 3s to the smoothing period of your choice.
--Chad Payne, Linn Software
800 546-6842, info@linnsoft.com
www.linnsoft.com


GO BACK

TradingSolutions: RSI SMOOTHED

In his article "The RSI Smoothed" in this issue, John Ehlers presents a smoothed version of the relative strength index (RSI) that uses a finite impulse response (FIR) filter on the input values to reduce their noise with minimal lag.

To implement this in TradingSolutions, first write a function for the Fir filter used in the formula. Note that since the outer lags and the middle lags each share the same multiplier, they can be grouped together to save a few steps.

Ehlers Smooth23 FIR

Name: Smooth23

Inputs: Close

Div (Add (Add (Close, Lag (Close, 3)), Mult (Add (Lag (Close, 1), Lag (Close, 2)), 2)), 6)


Now, write the smoothed RSI function. A few shortcuts can be taken here to simplify the function.

1. The formula adds the sum of all up-day changes and the sum of the negation of all down-day changes. This can be simplified to the sum of the absolute values of all changes.

2. The formula adds the sum of all up-day changes. Since up-day changes are defined as the days when the change is greater than zero, any down-day changes can be factored out by taking the maximum of the change and zero. This causes all changes less than zero to resolve to zero and not affect the summation.


Smoothed Relative Strength Index

Name: SRSI

Inputs: Close, Length

If (Sum (Abs (Change (Smooth23 (Close), 1)), Length),
 Div (Sum (Max (Change (Smooth23 (Close), 1), 0), Length),
 Sum (Abs (Change (Smooth23 (Close), 1)), Length)), 0)


These functions are available in a function file that can be downloaded from the TradingSolutions website in the Solution Library section.

As with many indicators, functions like the smoothed relative strength index can make good inputs to neural network predictions. If used directly, you will want to set the preprocessing to "None" since the value stays within a specific range, or "Change" if the momentum of the indicator is desired.





FIGURE 9: TradingSolutions, SMOOTHED RELATIVE STRENGTH INDEX. Here's a sample chart displaying the closing price, Ehlers' FIR filter, and the smoothed relative strength index.

--Gary Geniesse, NeuroDimension, Inc.
800 634-3327, 352 377-5144
www.tradingsolutions.com


GO BACK

TECHNIFILTER PLUS: RSI SMOOTHED

Here is a TechniFilter Plus formula for the smoothed relative strength index (SRSI) discussed by John Ehlers in his article in this issue, "The RSI Smoothed."
 The formula uses TechniFilter Plus' U4 modifier to compute the sum of the up moves and the down moves in lines 2 and 3. The U6 used in line 4 avoids division by zero problems.

NAME: SRSI

SWITCHES: multiline

PARAMETERS: 10

FORMULA:

[1]: (C + 2*CY1 + 2*CY2 + CY3)/6  {Smooth23}

[2]: ([1] - [1]Y1)U4F&1  {CU23}

[3]: ([1]Y1 - [1])U4F&1  {CD23}

[4]: [2]/([2]+[3])U6   {SRSI}


 Visit RTR's website to download this formula as well as program updates.


--Clay Burch, Rtr Software
919 510-0608, rtrsoft@aol.com
www.rtrsoftware.com
GO BACK

TECHNIFILTER PLUS: VOLATILITY BREAKOUT

Here is a TechniFilter Plus strategy for Paolo Pezzutti's volatility breakout system, as described in his article in this issue. The long entry and short entry requirements are all handled by formulas 8 and 9, respectively. Formulas 10 and 11 are the additional general market conditions that Pezzutti suggest be in place before you execute any trade.


NAME: VLTYbreakout

TEST TYPE: stock

FORMULAS----------------------------------

  [1] Date

  [2] Close

       C

  [3] High

       H

  [4] Low

       L

  [5] Average(13)

       CA&1

  [6] BuyPrice(.5)

       C + &1 * (H - L)

  [7] SellPrice(.5)

       C - &1 * (H-L)

  [8] okLong

       (O < [6]Y1) & (C < CY1)Y1 & ([2] > [5])Y1

  [9] okShort

       (O > [7]Y1) & (C > CY1)Y1 & ([2] < [5])Y1

  [10] okTrend(14,27)

       CS&1X&2 > 18

  [11] okVolatilty(25,13)

       ( ((H%CY1)-(L#CY1))X&1 / CA&2) > 0.01

RULES----------------------------------

  r1: EnterLong

       buy long 1 on [6]Y1

       at signal: enterLong     [10] & [11] & [8]

  r2: ExitLong

       sell long 1 on [3]Y1

       at signal: exitLong     [4] < [3]Y1

  r3: EnterShort

       open short 1 on [7]

       at signal: enterShort     [10] & [11] & [9]

  r4: ExitShort

       cover short 1 on [4]Y1

       at signal: exitShort     [3] > [4]Y1


 Visit RTR's website to download this formula as well as program updates.


--Clay Burch, Rtr Software
919 510-0608, rtrsoft@aol.com
www.rtrsoftware.com


GO BACK

SMARTRADER: RSI SMOOTHED

Smoothing the RSI, as presented by John Ehlers in this issue, requires only one formula in SmarTrader, the Smooth23. It is a weighted six-bar moving average of the closing price.

The SmarTrader specsheet is shown in Figure 10. Row 8, Smooth23, contains a user formula that weights, sums, and divides the closing prices, creating a nearly lag-free moving average. In row 9, we apply the standard RSI calculation -- using Smooth23 as the price field -- for 10 bars. This calculates the smoothed indicator, SRSI.



FIGURE 10: SMARTRADER SPECSHEET, SMOOTHED RSI. Here is the specsheet for the smoothed RSI.


Row 10 is a standard RSI calculated for the same 10-bar period. It is included for comparison only.

Both the SRSI and RSI are plotted in Figure 11 for comparison. Smooth23 is plotted over the price chart to illustrate the minimal lag induced by the calculation.





FIGURE 11: SMARTRADER CHART, SMOOTHED RSI. Here is a sample chart of the smoothed RSI in SmarTrader. Both the RSI and smoothed RSI are plotted for comparison.


For CompuTrac Snap users, omit the minus sign.

--Jim Ritter, Stratagem Software
504 885-7353, Stratagem1@aol.com


GO BACK

WAVE WI$E Market Spreadsheet: RSI SMOOTHED

The following Wave Wi$e formulas calculate John Ehlers' smoothed RSI. The actual smoothed RSI formulas have been placed in a Wave Wi$e procedure.


A: DATE @TC2000(C:\TC2000V3\Data,DJ-30,Dow Jones Industrials,DB)

B: HIGH

C: LOW

D: CLOSE

E: OPEN

F: VOL

G: Length    4

H: SRSIcalc  PROCEDURE(SRSI) 'CALL RSI PROCEDURE

I:  RSI           @RSI(CLOSE,LENGTH) 'CACLULATE STANDARD RSI

J: chart       @CHART(1) 'DISPLAY CHARTS

K:           ' ==========End Spreadsheet Formulas

'****************************************************

'PROCEDURE SRSI

'MESA SMOOTHED RELATIVE STRENGTH INDEX (SRSI)

'*****************************************************}

#NAME SMOOTH23 Z

#NAME COUNT X$1

#NAME CU23 X$2

#NAME CD23 X$3

#NAME SRSIX X$4

CU23 = 0 'INITIALIZE VARIABLES

CD23 = 0

SRSIX=0

SMOOTH23 = (CLOSE + 2*CLOSE[-1] + 2*CLOSE[-2] + CLOSE[-3])/6

@FOR COUNT = 0 TO LENGTH - 1

 @IF SMOOTH23[-COUNT] > SMOOTH23[-COUNT - 1] THEN

  CU23 = CU23 + SMOOTH23[-COUNT] - SMOOTH23[-COUNT - 1]

 ENDIF

 @IF SMOOTH23[-COUNT] < SMOOTH23[-COUNT - 1] THEN

  CD23 = CD23 + SMOOTH23[-COUNT - 1] - SMOOTH23[-COUNT]

 ENDIF

NEXT

@IF CU23 + CD23 <> 0 THEN

 SRSIX = CU23/(CU23 + CD23)

ENDIF

@RETURN(SRSIX) 'RETURN SMOOTHED RSI CALCULATION

'END PROCEDURE


--Peter Di Girolamo, Jerome Technology
908 369-7503, jtiware@aol.com
https://members.aol.com/jtiware


GO BACK

All rights reserved. © Copyright 2002, Technical Analysis, Inc.

Return to October 2002 Contents
